Category：Cooperative Product

Product specifications：
FEATURES:

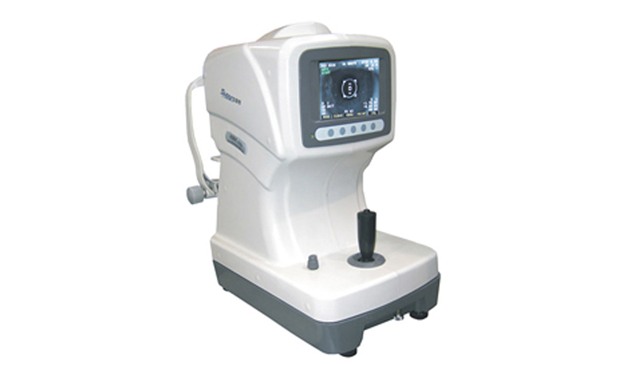

The first internal set auto refracmeter / keratometer. It can measure not only refractometry but also keratometry. Color TFT LED monitor special font design makes operation convenient. The foggy method of the eye fiation farger makes examinee’s eyes comfortable and enables to get more accurate measurement data.

MAIN TECHNICAL INDEXES:

Test Mode: KER/REF Mode: Continuous KER/Refractometry

REF Mode: Refractometry

KER Mode: Keratometry

CLBC Mode: Contact lens bases Curve

Refractometry: VD: 0,10,12,13.5,15mm

Sphere: -20.00~+20.00D (VD=12mm, 0.12 or 0.25D)

Cylinder: 0.00~+/-10.00D (0.12 or 0.25D)

Axis: 1~180° (increment: 10)

Sign of cylinder: -, +, +/-

PD:10~85mm

Minimum Pupil Diameter: Φ2.0mm

Test Time: 0.07sec

Keratometry: Radius of Curvature: 5.0~10.2mm

Corneal Power: 33.00~67.5D

Corneal Astigmatism: 0.00~15.00D (0.05/0.12/0.25D)

Axis: 1~180°

Corneal Diameter: 2.0~12.0mm

Other: Printer: Thermosensitive printer

Saving Mode: 3,5,10 minutes

Monitor: 5.6inch TFT monitor

Power Supply: AC 100-240V, 50/60HZ/90W

Measurement &Weight: 148(W)*476(L)*475(H)mm, 21kgs

Chin rest: Max 55mm

Data output: Rs-232 interface, Video output
