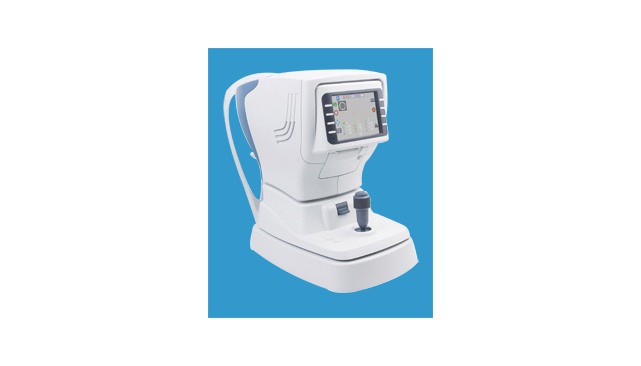

Features
Feathers:
1. New color LCD screen
2. Auto fogging system high accuracy.
3. Auto PD measurement.
4. Standard testing eye as standard accessory.
5. Easy, one-hand control: all operations can be easily controlled with one hand through the control stick
MAIN TECHNICAL INDEXES:
1. Measuring Range：Sphere: -20~+20D(VD=12) 0.125D steps；
Cylinder: -8~+8D 0.12D/0.25 steps；
Axis: 0~180 ° 1 ° steps
2. Pupil Distance: 45~88mm, 1mm steps
3. Vertex Distance: 0mm, 12mm, 13.75mm
4. Min. Pupil Size: Φ2.2mm
5. Chart: Auto fog
6. Display: 5 〞CRT Monitor
7. Print: Thermal Printer
8. Power Supply: 100~120v/200~240v, 50/60Hz
9. Dimensions: 484(L)*282(W)*440(H)mm
10. Weight: 20kgs
1. With Auto-tracing feature, operator can adjust the focus and alignment in up and down directions.
2. With Auto video taping feature, operator can take measurements automatically once equipment obtains satisfactory focus and alignment.
3. With Servo Chin-Rest, operator can adjust height of Chin-rest easily.
4. Display is tilt-adjustable.
Printer has a paper auto-cut feature.
SPECIFICATIONGS
Measurement mode Cornea/ refractometry measurement mode keratometry/refractometry
Mode of keratometry refractometry
Refractometry measurement mode keratometry
Refractometry Vertex Distance 0，10 ，12，13.5 ，15㎜
Spherical degree -20.00~+20.00D(VD=12 ㎜，0.12or0.25D )
Cylinder degree 0.00~+/-10.00D(0.12 or 0.25D)
Axial 1~180 °（step 1°）
Cylinder Symbol - ， + ， +/-
pupil distance 30~85 ㎜
Minimum pupil diameter ￠ 2.0 ㎜
Measuring time 0.07sec
Keratometry Radius of curvature 5.0 ~10. 2 ㎜
Corneal refractometry 33.00 ~ 67.50D
Corneal diameter 2.0 ~ 12.0 ㎜
Others printer Thermal printer
Saving Settings ?5 、 15 Minutes
Monitors 5.7inch of TFT monitors
Auto Tracing Function Range ±16mm (up and down direction only)
Power AC 100 ~ 240V,50/60HZ/90W
Size / Weight 484(L) ×270(W) ×450(H) mm /17㎏
Jaw panel Max 55 ㎜
