Slit Lamp YZ-5F1
  • Slit Lamp YZ-5F1

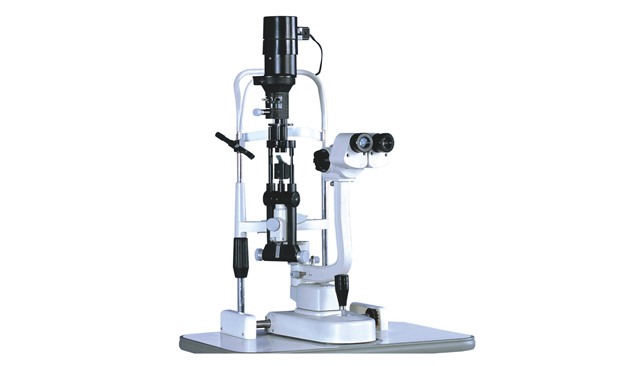

Slit Lamp YZ-5F1

Category:Cooperative Product

Product specifications:
FEATURES:

1. The bulb and optical lens made of glass are imported from Germany.

2. All the lens are multi-coated, mildewproof and anti-reflection.

3. All the adaptors are universal.


1000


MAIN TECHNICAL INDEXES
1. Microscope Type: parallel included angle type.
2. Magnification: Five- step magnifications
3. Eye PEICE: 12.5x
4. Total Magnification and field of View(mm): 6 X (Ø 33)、10 X ( Ø 22.5)、16 X ( Ø 14)、25 X ( Ø8.8)、40 X ( Ø 5.5)
5. Range of Pupil Distance (mm): 55 ~ 75
6. Adjustment of Diopter: -5D ~ +3D
7. Slit Width (mm): 0 ~ 9 adjustable
8. Slit Height (mm): 1~ 8 adjustable
9. Slit Angle: 0~180°
10. Slit Inclination: 5° 、10°、15°、20° , 4 ranges choice
11. Light Spot Diameter (mm): Ø9、Ø8、Ø5、Ø3、Ø2、Ø1、Ø0.2
12. Filter: heat absorption, grey, redfree, cobalt blue
13. Illumination Bulb: 12V/30W halogen bulb
14. Voltage/ frequency: AC 220V ± 10%/60Hz ± 1Hz、AC 110V ± 10%/ 50Hz ± 1Hz
15. Power: 58VA
16. Electrical Safety Standard: Conform to standard IEC 601-1. Class 1 Type B
17. Whole Packing Volume: 0.21m3
18. Carton Number: 1
19. Total Weight: 27kgs
20. Accessories: Applanation Tonometer (R type and T type), Measuring Eyepiece, Beam Splitter, CCD Adapter, CCD, Camera , Teaching Tube, etc.
