MAIN TECHNICAL INDEXES

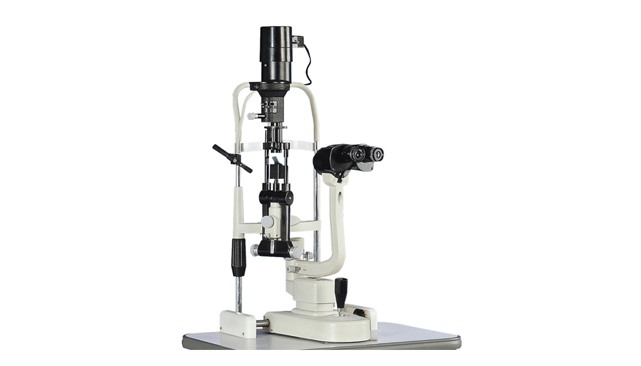

1. Microscope Type: Converging Stereoscope
2. Magnification: three-step magnifications
3. Eye PEICE: 10X /16X
4. Total Magnification and field of View(mm): 10 X (Ø 18 )、16 X ( Ø 14.5)、16 X ( Ø 11.25)、25.6 X ( Ø 9)
5. Range of Pupil Distance (mm): 55mm～82mm (10x) 51mm～78mm(16x)
6. Adjustment of Diopter: ±8D(10x) ±10D(16x)
7. Slit Width (mm): 0 ~ 9 adjustable
8. Slit Height (mm): 1~ 8 adjustable
9. Slit Angle: 0~180°
10. Slit Inclination: 5° 、10°、15°、20° , 4 ranges choice
11. Light Spot Diameter (mm): Ø9、Ø8、Ø5、Ø3、Ø2、Ø1、Ø0.2
12. Filter: heat absorption, grey, redfree, cobalt blue
13. Illumination Bulb: 12V/30W halogen bulb
14. Voltage/ frequency: AC 220V ± 10%/60Hz ± 1Hz、AC 110V ± 10%/ 50Hz ± 1Hz
15. Power: 58VA
16. Electrical Safety Standard: Conform to Standard IEC 601-1.Class1Type B
17. Whole Packing Volume: 0.21m3
18. Carton Number: 1
19. Total Weight: 28kgs
20. Accessories: Applanation Tonometer (R type and T type), Measuring Eyepiece
