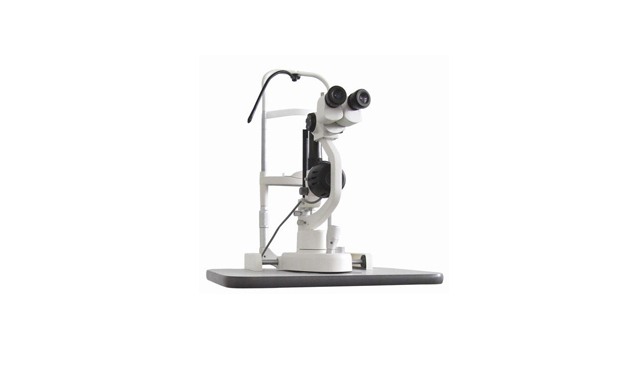

S280 Slit Lamp Microscope
  • S280 Slit Lamp Microscope

S280 Slit Lamp Microscope

Category:Cooperative Product

Product specifications:
The Galilean-type magnification system provides the 10X, 16X and 25X three magnification (standard configuration) and 6X, 10X, 16X, 25X and 40X (professional configuration); there is no need to change the eyepieces. The CCD adaptor, digital camera and teaching tube are supported.

It can provide 0.5mm, 3.5mm, 8mm and 14mm (max) apertures; it is specially fit for the examination for contact lens and foreign body in cornea.

The German imported Osram 12V30W halogen lamp and LED lamp are both available.

The slit angle can turn over 180 degree, horizontal scanning is supported.

Thermal safety, cobalt blue and red free filters are provided.


1000


Microscope:
Type : Galilean-Type
Magnification change : Revolving Drum
Total magnification Ratio : 10×, 16×, 25×(standard configuration) 6×,10×, 16×, 25×,40×(professional configuration)
Eyepieces : 12.5×
Angle between yepieces 13º
Pupillary adjustment : 55mm~78mm
Diopter adjustment : ±6D
Field of view : 40× (Ø5.5mm), 25× (Ø8.5mm),16× (Ø13.5mm), 10× (Ø22mm), 6× (Ø34.7mm)
Slit Illumination:
Slit width : Continuously variable from 0 to 14mm (at 14mm,slit becomes a circle )
Slit length : Continuously variable from 1mm to 14mm
Lamp : 12V/30W Halogen Lamp
Slit angle : 0º~180º (continuously adjustable both vertical and horizontal)
Aperture diameters : Æ14mm,Æ8mm,Æ3.5mm,Æ0.5mm,
Filters : Thermal safety,Red-free,Cobalt Blue
Base:
Longitudinal movement : 90mm
Lateral movement : 100mm
Vertical movement : 30mm
Chin-Rest:
Vertical movement : 80mm
Fixation : Green LED
Power:
Input voltage : 220V/110V~±10%
Input frequency : 50Hz/60Hz
Power consumption : 40VA(max)
Output voltage : Lamp 12V (continuously adjustable) Fixation 3V
Dimension & Weight:
Dimension : 740mm x 450mm x 500mm
Gross weight : 22Kg
Net weight : 20kg
