Cooperative Product

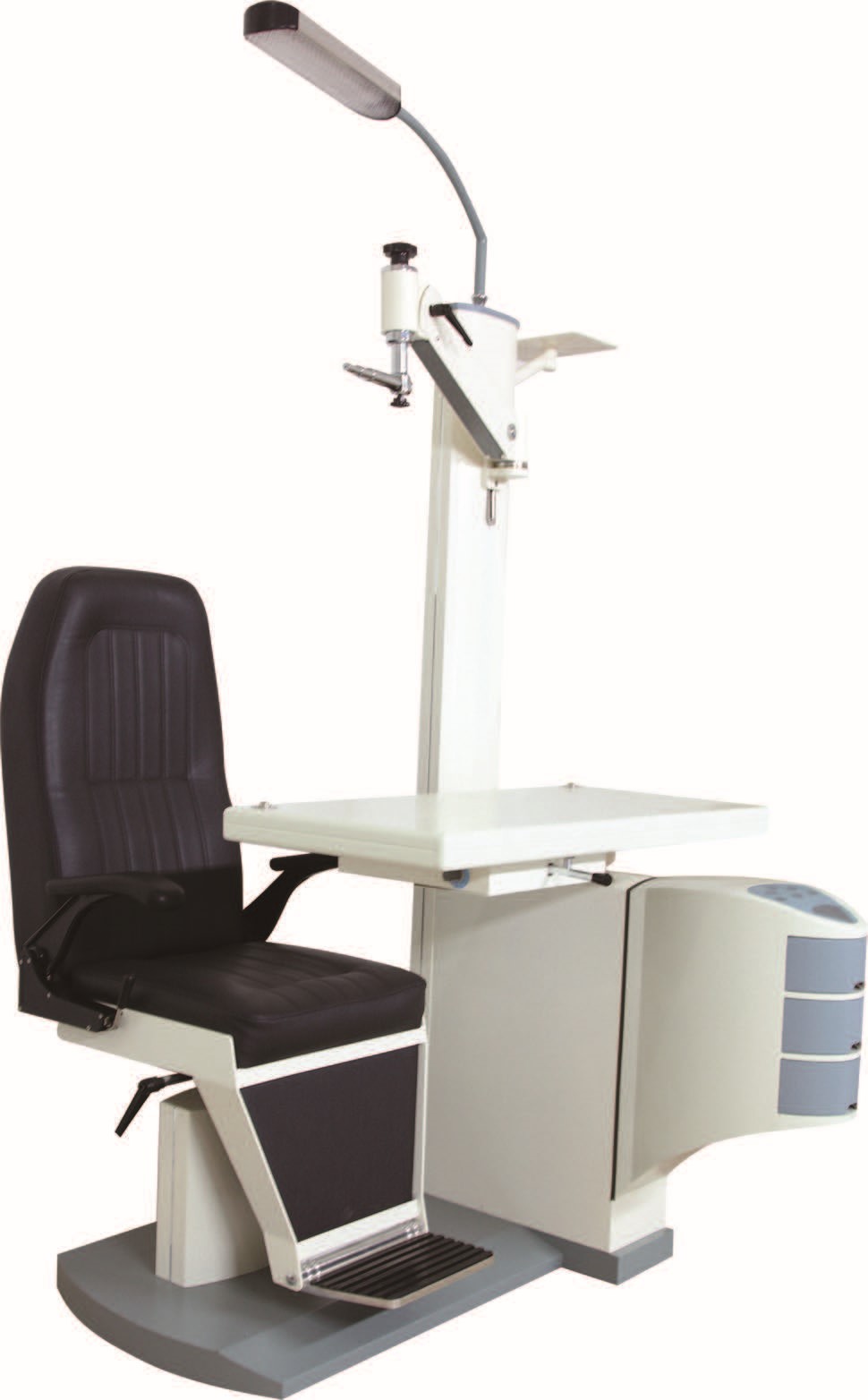

Ophthalmic Refraction Table TN-1010

Category:Cooperative Product

Product specifications:
FEATURES:

Elaborately made of high-grade stainless steel, aluminum alloy as well as ABS plastics.

Table panel is made of High-quality fire-proof plated, which has excellent characteristics such as temperature-resistance, wearing-resistance and erosion-resistance.

Low noises, elegant appearance, handiness and substance, as well as easy to utilization and maintenance.

Most suitable to be matching with Ophthalmic and Surveying Instruments and the best choose of hospitals, clinics and spectacle stores


1000


Specifications:
Maximum dimension: 2130mm * 1555mm * 2010mm
Table size: 890mm * 430mm
Table rotational angle: 90°
Table sliding movement: 360mm

 Rotation angle of chair: ±45°

 Chair sliding movement: 50mm

 Lifting height of chair: 570mm ~ 690mm

 Loading of chair: 150kg

 Backrest reclining: 100° ~ 120°
Input voltage: 110V 60HZ / 220V 50HZ
Net weight: 170kg
